Handheld POS with Thermal Printer CDM/GPRS Camera

Product Description

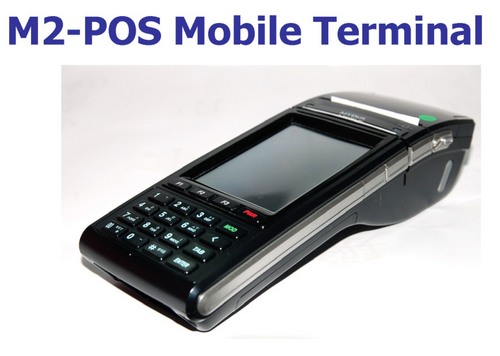

M2-POS Mobile Terminal

Specifications

Operating System Microsoft WIN CE 5.0 Pro

* All-in-one enterprise handheld solution

* WLAN & Bluetooth & CDMA communication options

* Smart card reader module

* Built-in thermal printer & magnetic card reader

* Built-in barcode scanner (option)

* Built-in camera (option)

Processor Intel Bulverde Xscale PXA270 520MHz

Memory (ROM/RAM)

64MB NOR , 64MB (up to 1.0 GB) NAND / 128MB (up to 256

MB) SDRAM

Display 320x240, 3.5” 260K color TFT-LCD with Touch Screen

MSR Track 1, 2, 3 support / multi direction

Printer 2 inch Thermal Printer built-in multilingual supports

Battery 3,800mAh Li-ion rechargeable (Detachable)

Keys 12 numeric keys & 7 Functional keys

Indicator 2 LEDs, 3 colors for each

Expansion Micro SD card slot for Memory expansion

Dimension (mm) 214.8 (L) x 83.2 (W) x 55.5 (H)

I/O

USB, Micor phone, Speaker, Stereo Ear-mic jack, DC jack, 24

pin syne connector

Cradle

RS232C 2 ports, USB Host & Slave port, DC Jack, phone Jack

External Battery Charging slot, Stylus pen holder

Voice and Data (optional)

Smart Card Reader 4 SAM

Accessories

User’s Manual Book, ActiveSync CD, USB Cable, Stylus pen

Optional

Arm Band, Hand Strap, Battery pack, Leather Holder,

Micro SD Memory Card

Weight (g) Approx. 430g

1D Laser (option: Laser 2D, PDF 417)

Camera 2 Mega No Flash

Wireless

Communication

WLAN

CDMA

Barcode Scanner

Bluetooth

WLAN 802.11 b/g

Class 2 (optional)
